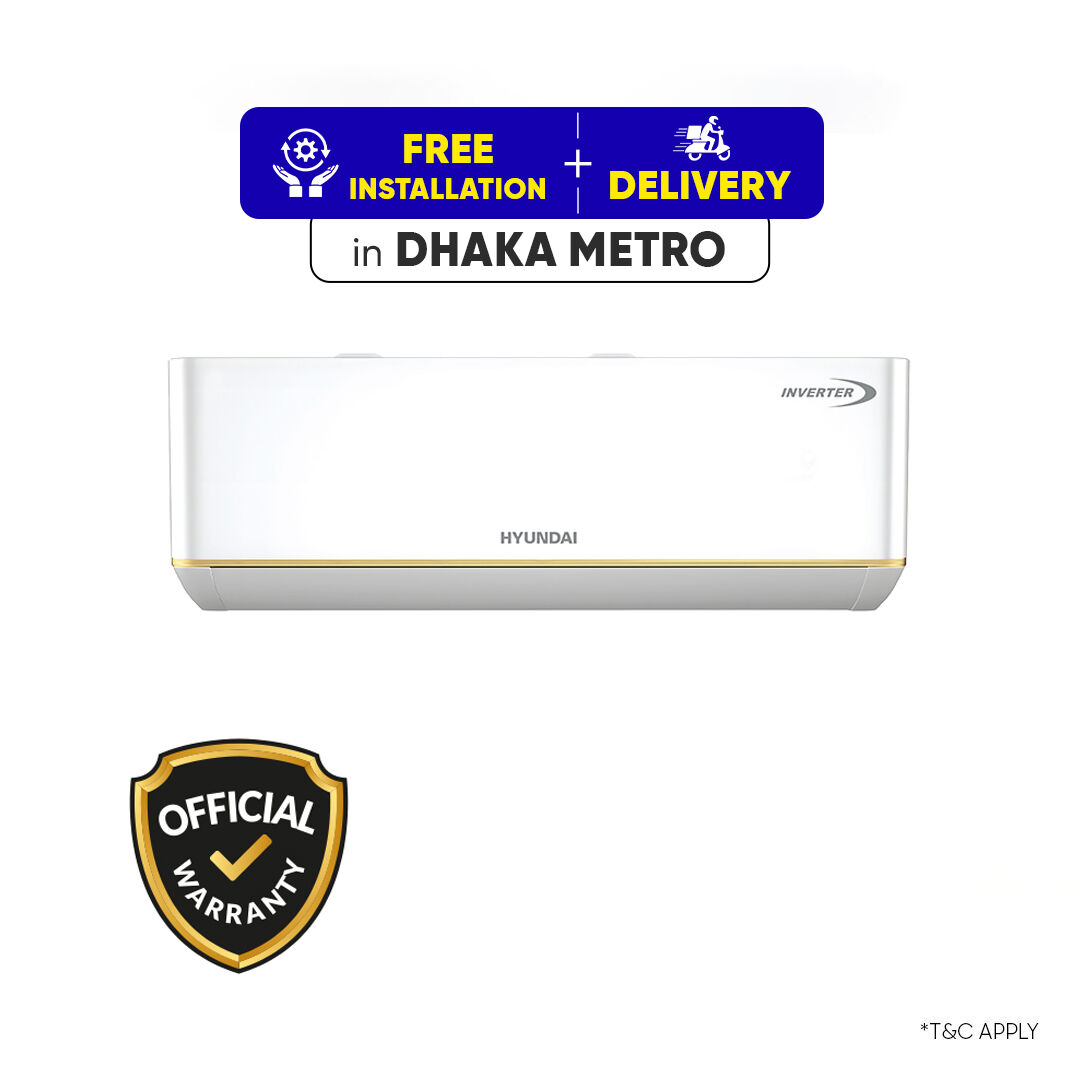

Hyundai 1 Ton Inverter Air Conditioner (HYA-12CIB3 G1)

Hyundai 1 Ton Inverter Air Conditioner (HYA-12CIB3 G1) Features & Specifications

Key Features:

• 100% Copper Coil
• Dehumidifier System
• Surround Clear Air

Specifications:

Basic Information & Performance:

• Type: Inverter
• Cooling Capacity: 12000 BTU/hr.
• Cooling Power: 3517W (600~3700W)
• Energy Efficiency Ratio (EER): 3
• Ambient Temperature Range: T1
• Indoor Sound power level [dB(A)] Hi/Mid/Lo: 40/36/34
• Outdoor Sound power level [dB(A)] Hi/Mid/Lo/So: 54/50/48

Compressor & Refrigerant:

• Compressor Type: Rotary
• Refrigerant Type: R32
• Refrigerant Amount: 0.530 Kg

Heat Exchangers & Coil System:

• Evaporator Type: Inner Groove Cu Tube
• Evaporator Fin Type: Hydrophilic
• Condenser Type: Inner Groove Cu Tube
• Condenser Fin Type: Hydrophilic

Control & Convenience

• Smart Control: Remote

Operations:

• Turbo Mode (Maximum Cooling)
• ECO Mode (Power Saving)
• Dry Mode
• Fan Mode
• Comfort Cooling
• Auto Operation
• Auto Restart
• Hidden Display
• Timer
• Sleep

Remote & Air Deflection:

• Operation: Yes
• Child Lock: Yes
• Temperature Unit Change: Yes
• Auto UP-Down Swing: Yes
• Auto Left-Right Swing: Yes
• Air circulation (m3/h): 550

Power & Electrical:

• Rated Voltage: 187-265V
• Power Input: 1172W
• Input Current: 5.20A

Piping & Installation:

• Refrigerant Pipe (Liquid Side): Φ6mm (1/4’’)
• Refrigerant Pipe (Gas Side): Φ9.52mm (3/8’’)
• Maximum Pipe Length: 15m
